Kiosk CCD 1D Barcode Scanner Module 265 LUX Light Intensity With Serial / USB Version

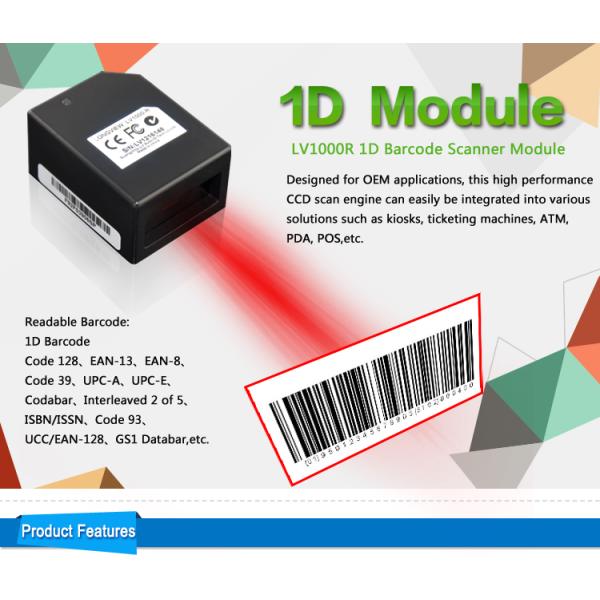

Designed for OEM applications, this high performance fixed mount barcode scanner can easily be integrated into various solutions such as kiosks, ticketing machines, (reverse) vending machines and many more.
Ease of integration
Compact and easy to integrate design. The small form factor enables easy integration into various solutions. LV1000R has an IP54 rating meaning it is dust -and water resistant.
Advanced Technology
The scanner supports all global standard 1D barcode symbologies. Its reading performance exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.
Specifications
| Performance | |
| Image Sensor | Linear imager |
| Resolution | 2500 |

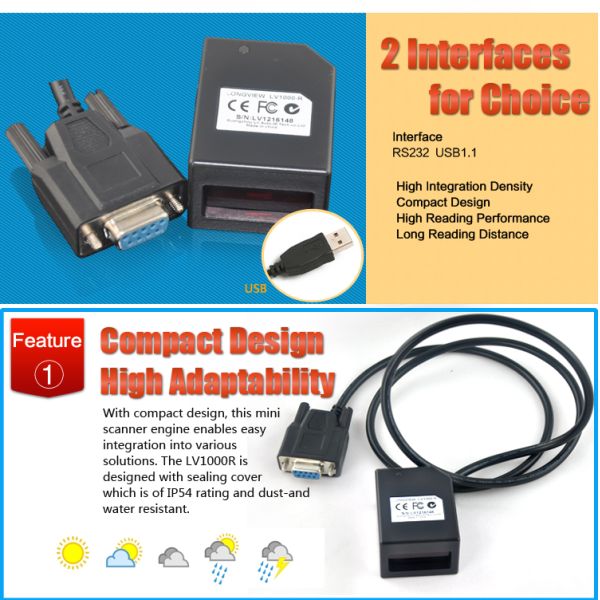

| Interface | RS232, USB 1.1 |
| Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc. |
| Precision | >=5mil ( Condition: PCS=0.9, testing code: Code 39) |

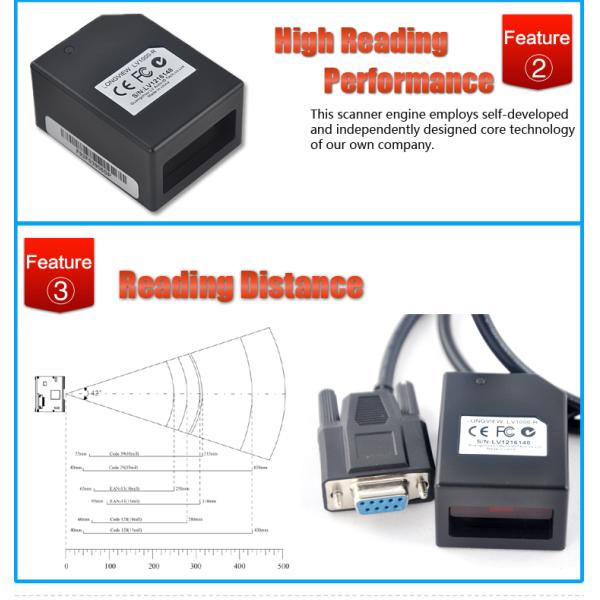

| Depth of Scan Field | 40mm-430mm |
| Print Contrast Signal | >=30% |
| Sensitivity** Pitch | ±65°@ 0°Roll and 0° Skew |
| Roll | ±30°@ 0°Pitch and 0° Skew |
| Skew | ±60°@ 0°Roll and 0° Pitch |
| Illumination | 0 ~ 100,000 LUX |
| Light Source | LED(622 nm - 628 nm) |
| Light Intensity | 265 LUX (130 mm ) |
| Mechanical/ Electrical | |
| Power Consumption | 1.25W |
| Voltage | DC 5 V |
| Current Max | 250 mA |
| Working | 170mA |
| Idle | 65mA |
| Dimensions | 49.0 *37.0 * 26.0 mm |
| Weight | 70g |
| Environment | |
| Operate Temperature | -5°C - +45°C |
| Storage Temperature | -40°C - +60°C |
| Humidity | 5% - 95% (non-condensing) |
| Certificates | CE FCC Rohs |
| Accessories | |
| RS232 Cable | Equipped with a power connector; used to connect the LV1000R to a host device. |
| USB Cable | Used to connect the LV1000R to a host device. |
| Power Adaptor | Output: DC 5V, 2A; Input: AC100~240V, 50~60HZ. |
| **Test Conditions: | Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ;
Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX |
FAQ
Q1: Can I get some samples? Are they free?
A1: We support 1pc sample order. Samples should be paid.
Q2: Can I get extra cables for the scanners?
A2: Yes you can. We will provide according to your request.
Q3: How can I buy?
A3: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q4: What is your payment method?
A4: We accept online credit card, TT, Paypal, Western Union.
Q5: Can I visit your factory:
A5: Yes, you are warmly welcome.
Q6: How long is your warranty time:
A6: 1 Year.
Q7: Where can we download the user manual of the scanners?
A7: We will send by email after you get samples.
Q8: What's the lead time?
A8: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q9: Can you provide OEM service?
A9: Yes. We need further discuss about details.
Q10: How do you ship the scanners usually?
A10: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
